Vo-Tech Vertical Motor and Pump Coupling Alignment Tools deliver fast, precise, and safe alignment of vertical motor and pump coupling assemblies in heavy industrial environments. Each tool eliminates the need to rotate heavy motor shafts and couplings during alignment — improving safety, reducing physical strain on personnel, and shortening maintenance windows.

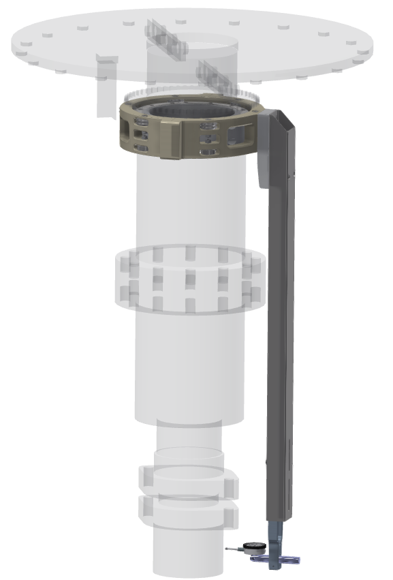

High-precision ball bearings allow the tool to rotate smoothly against the motor coupling while a dial indicator captures the position of the pump coupling. Technicians can identify misalignment immediately and make precise adjustments until the assembly is in tolerance. Available in four configurations, the toolset covers a full range of coupling sizes, equipment layouts, clearance constraints, and accuracy requirements.
Each configuration is engineered for a specific combination of coupling layout, clearance, and required precision.
| Configuration | Accuracy | Clearance Required | Best Application | Mounting | Key Advantage |
|---|---|---|---|---|---|
| Flange Mount – Double Row | ±0.0005″ | Minimum 6″ | Systems with a spool piece between motor and pump couplings | Mounted directly to motor coupling flange | Highest precision alignment |
| Solid Shell – Single Row | ±0.001″ | Minimum 2″ | Coupling assemblies without a spool piece | Mounted directly to motor coupling flange | Compact and accurate solution |
| Split Shell – Double Row | ±0.001″ | None | Coupling assemblies without a spool piece | Clamps around motor coupling | No clearance required between couplings |
| Split Shell – Single Row | ±0.0015″ | None | Coupling assemblies without a spool piece in tight spaces | Clamps around motor coupling | Ideal for confined-clearance applications |

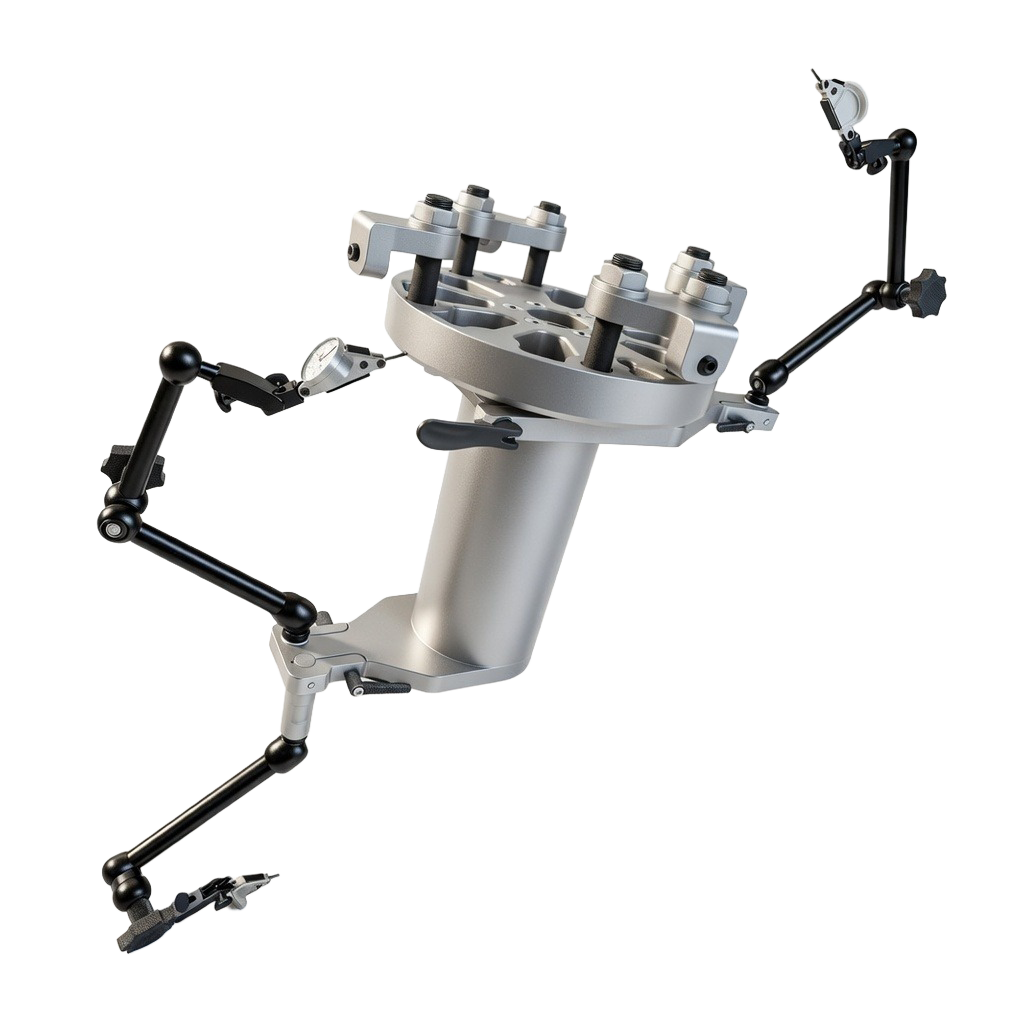

The highest-precision configuration in the lineup, with alignment tolerances of ±0.0005″. Requires a minimum of 6 inches of clearance between couplings for installation and operation. Typically used on coupling assemblies that incorporate a spool piece between the motor and pump couplings, allowing the tool to mount securely to the motor coupling flange while delivering precision measurements.

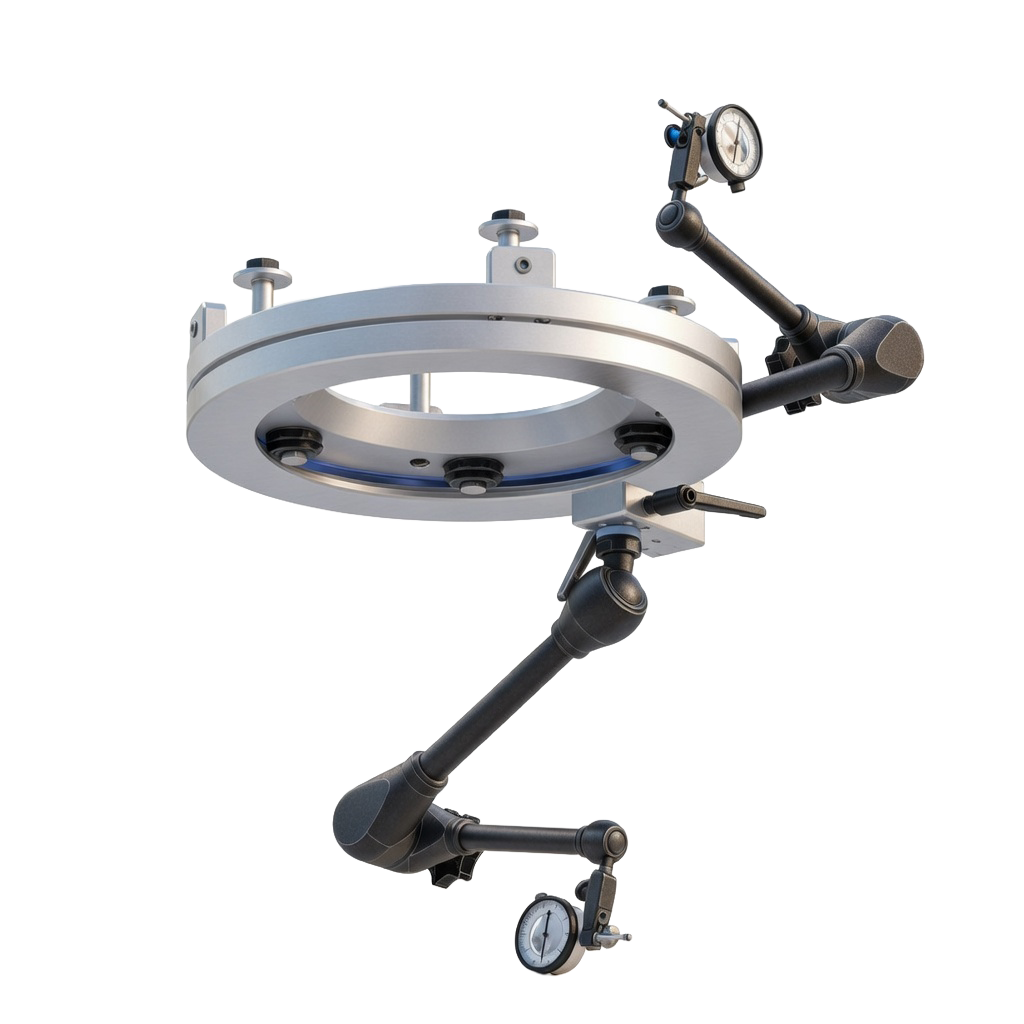

Provides high alignment accuracy at ±0.001″ and requires a minimum of 2 inches of clearance between couplings. Commonly used on coupling assemblies without a spool piece, with the tool mounted directly to the motor coupling.

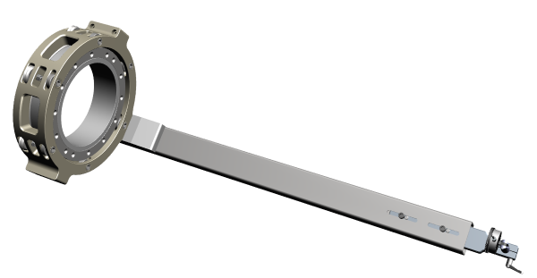

Delivers ±0.001″ alignment accuracy with no clearance required between couplings. The split-shell design clamps securely around the motor coupling, making this configuration well suited to coupling assemblies without a spool piece where space between the couplings is unavailable.

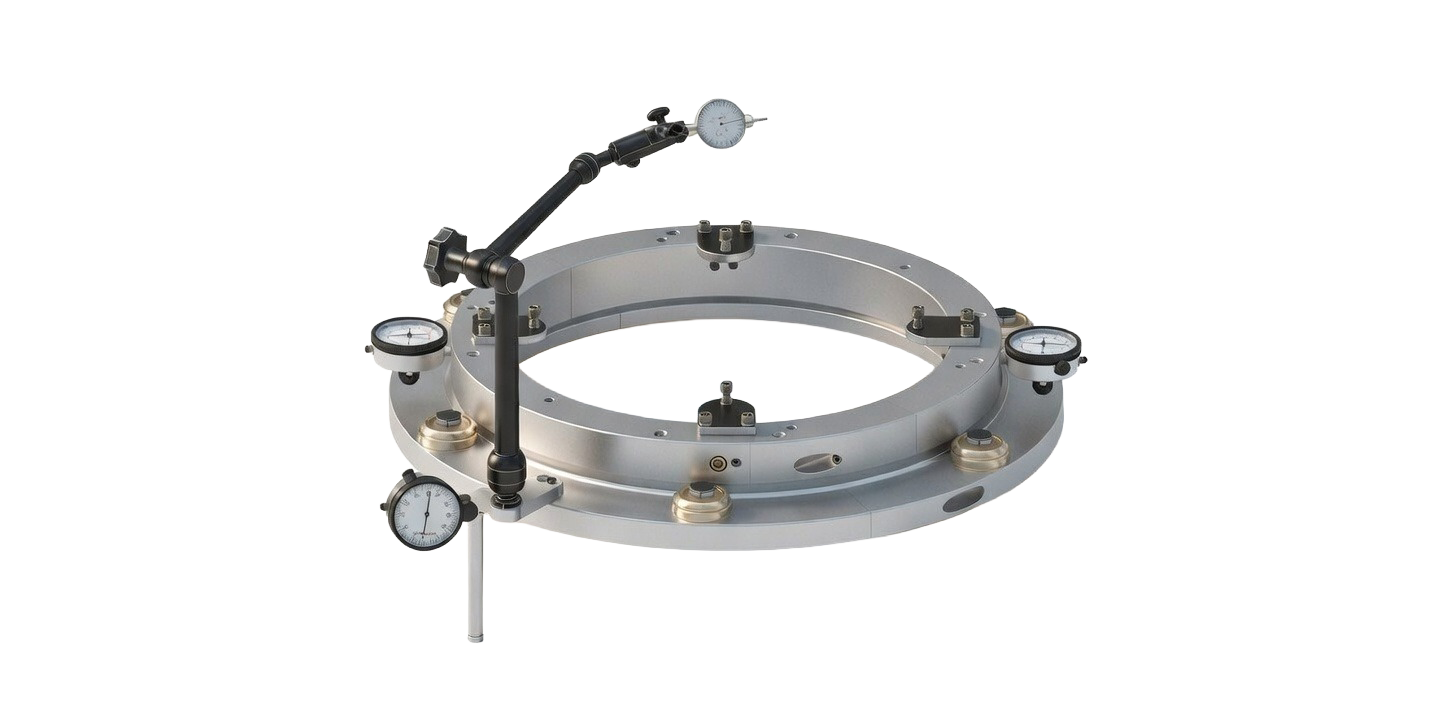

Delivers reliable ±0.0015″ alignment accuracy with no clearance required between couplings. The split-shell design clamps around the motor coupling and is the preferred choice for coupling assemblies without a spool piece in tight or confined spaces where larger tools cannot be deployed.
Three factors drive configuration selection:
Contact Vo-Tech to identify the correct configuration for your equipment, request a quote, or arrange field support for an alignment project.
